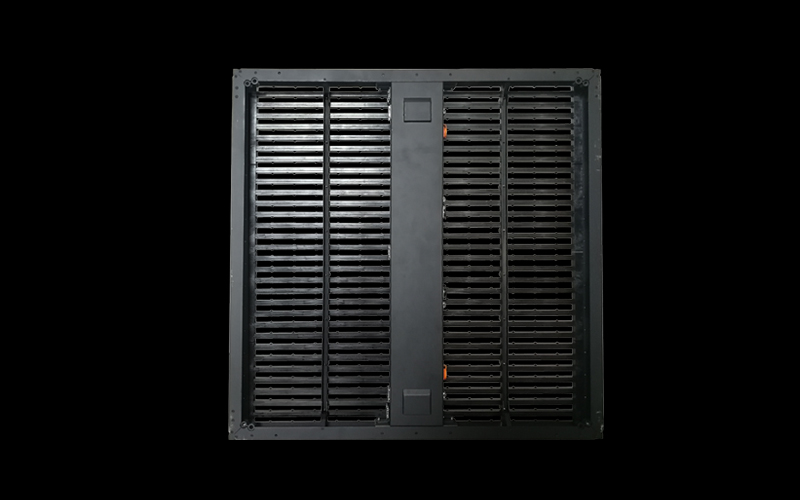

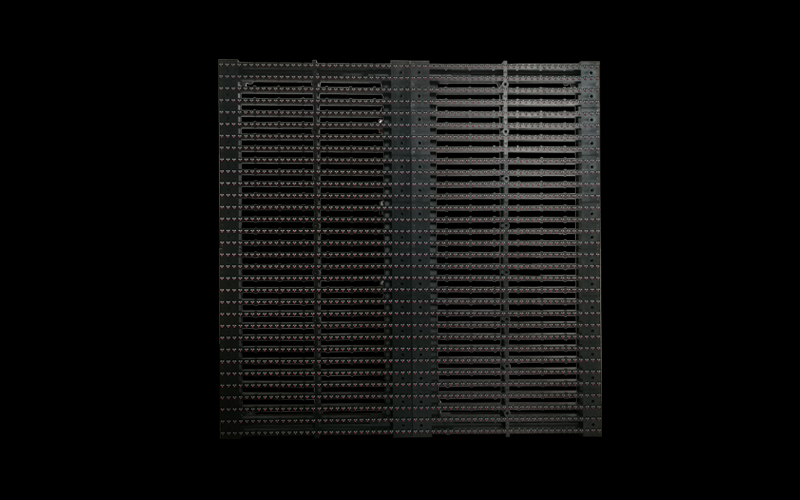

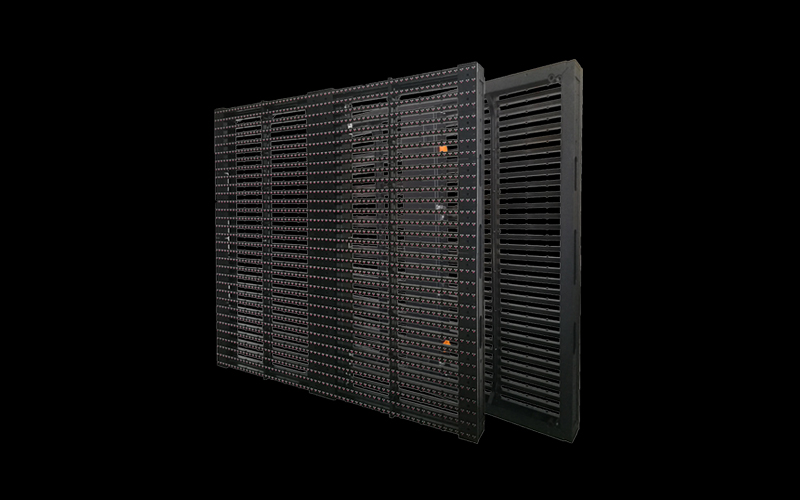

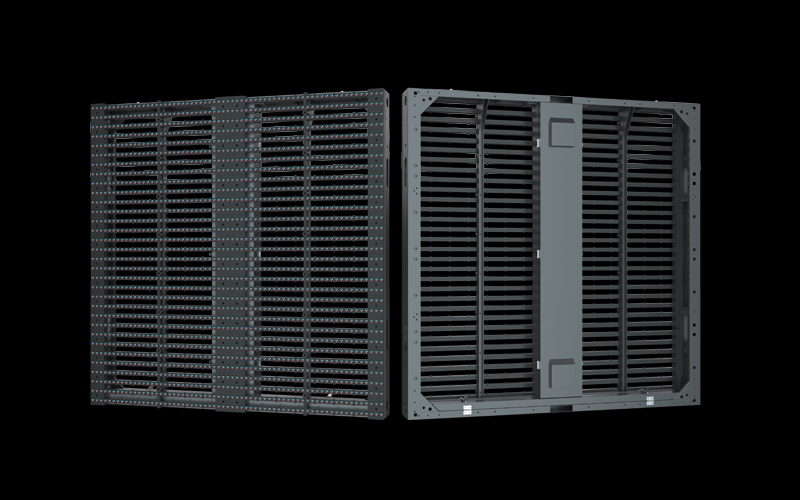

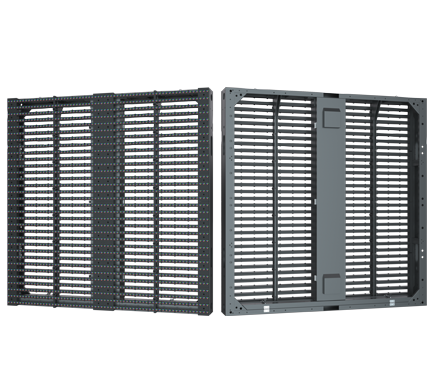

Modular design, so the C series is more simple and reliable. With better waterproof and heat dissipation performance. C series can be installed in a variety of outdoor environments because it can be either front or rear-installed and maintained.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. Seeing Led Team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
Seeing Led Team

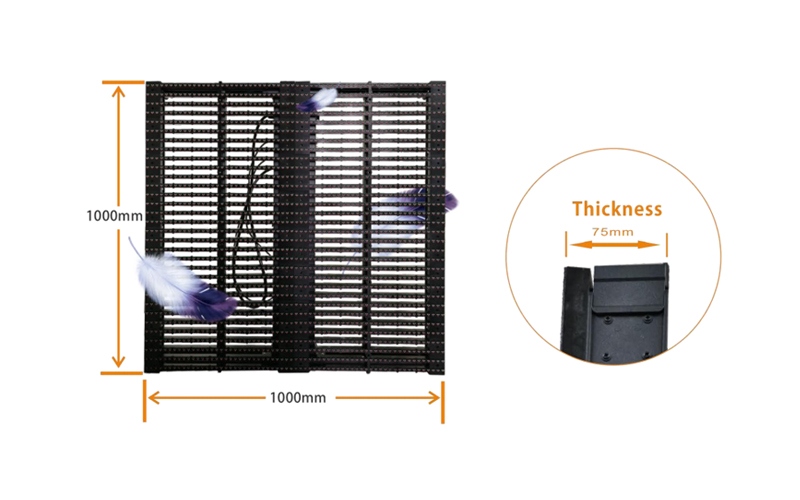

The cabinet size is 1000mm*1000mm and it is exactly one square meter. The screen size can be measured in multiples of one square meter. Thickness is only 75mm, significant savings in installation space. Weights only 19kg/SQM, saving transportation and installation costs.

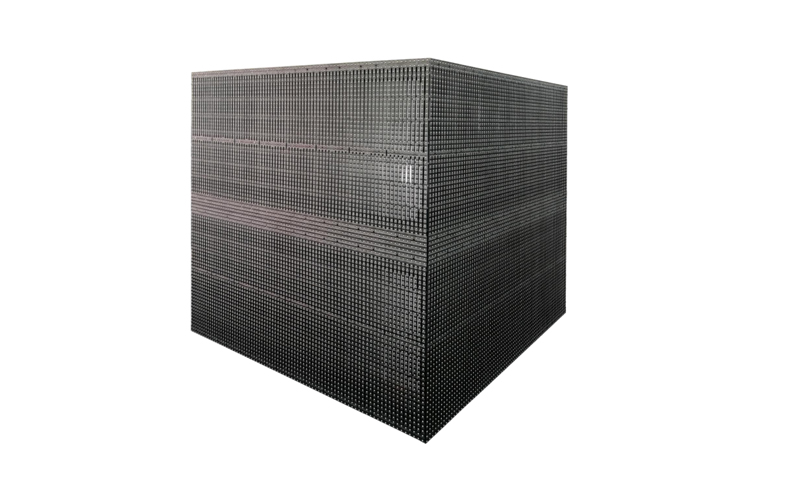

The edges of each module are designed to be 45 degrees, so it is easier to make the right-angled connection and realize a glasses-free 3D LED display.

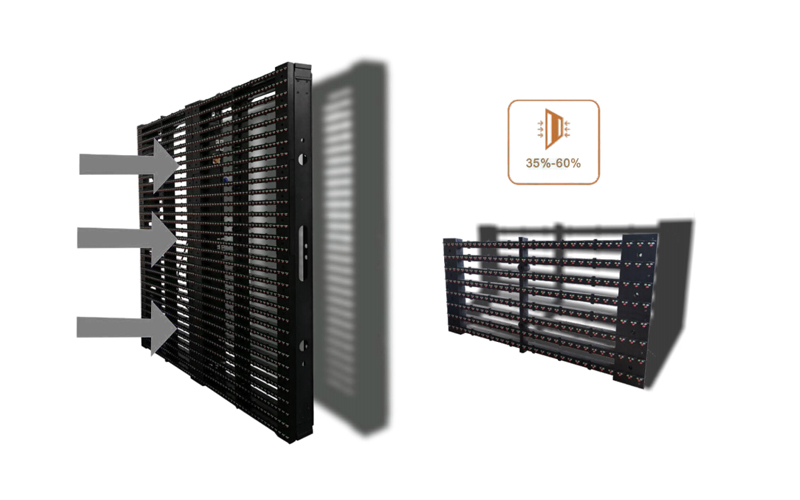

Buildings behind the screen have better natural lighting, Cabinets are thinner and easy to install
With IP65/IP54 waterproof, the C series meets the requirements of the outdoor working environment.
C series can be installed naked without a cover and air conditioner because of its lP 65 waterproof rate and good heat dissipation design. lt requires only a simple steel structure for installation.
Max Power Consumption:360W/ sqm, Avg Power Consumption:100W/ sqm, More energy efficient.
| Item | P15.6-15.6 | P15.6-31.25 |
| Pixel Pitch (mm) | P15.6-15.6mm | P15.6-31.25mm |
| Module Resolution | 32x8 | 32x8 |
| Module Size (WxH) | 500 x 125 | 500 x 250 |
| LED Configuration | SMD2727 | DIP346 |
| Cabinet Size (WxH) | 1000 x 1000 x 75 | |
| Cabinet Weight (kg/pc) | 19 | 20 |
| Cabinet Material | Aluminum+Iron | |
| Ingress Protection | IP65/IP54 | IP65/IP54 |
| Maintenance | Front/Rear | Front/Rear |
| Refresh Rate (Hz) | 3840 | 3840 |
| Brightness (nits) | 6000-8000nits | 8000-12000nits |
| View Angle (H./V.) | 120°(horz.), 60° (vert.) | |
| Max. Power Consumption | 800W/m² | 360W/m² |
| Avg. Power Consumption | 266W/m² | 100W/m² |
