The most direct and significant advantage that the Grey series brings to the operator is that it reduces the power consumption of the LED display, which lowers the operation cost. at the same time, low heat, low-temperature rise, and other operating characteristics can save air conditioning and other refrigeration equipment, reducing investment costs. In the case of ensuring high brightness and high contrast, it maximizes energy saving, and at the same time, it has the advantages of low-temperature rise, low heat generation, low power consumption, long service life, and good display effect.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. Seeing Led Team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
Seeing Led Team

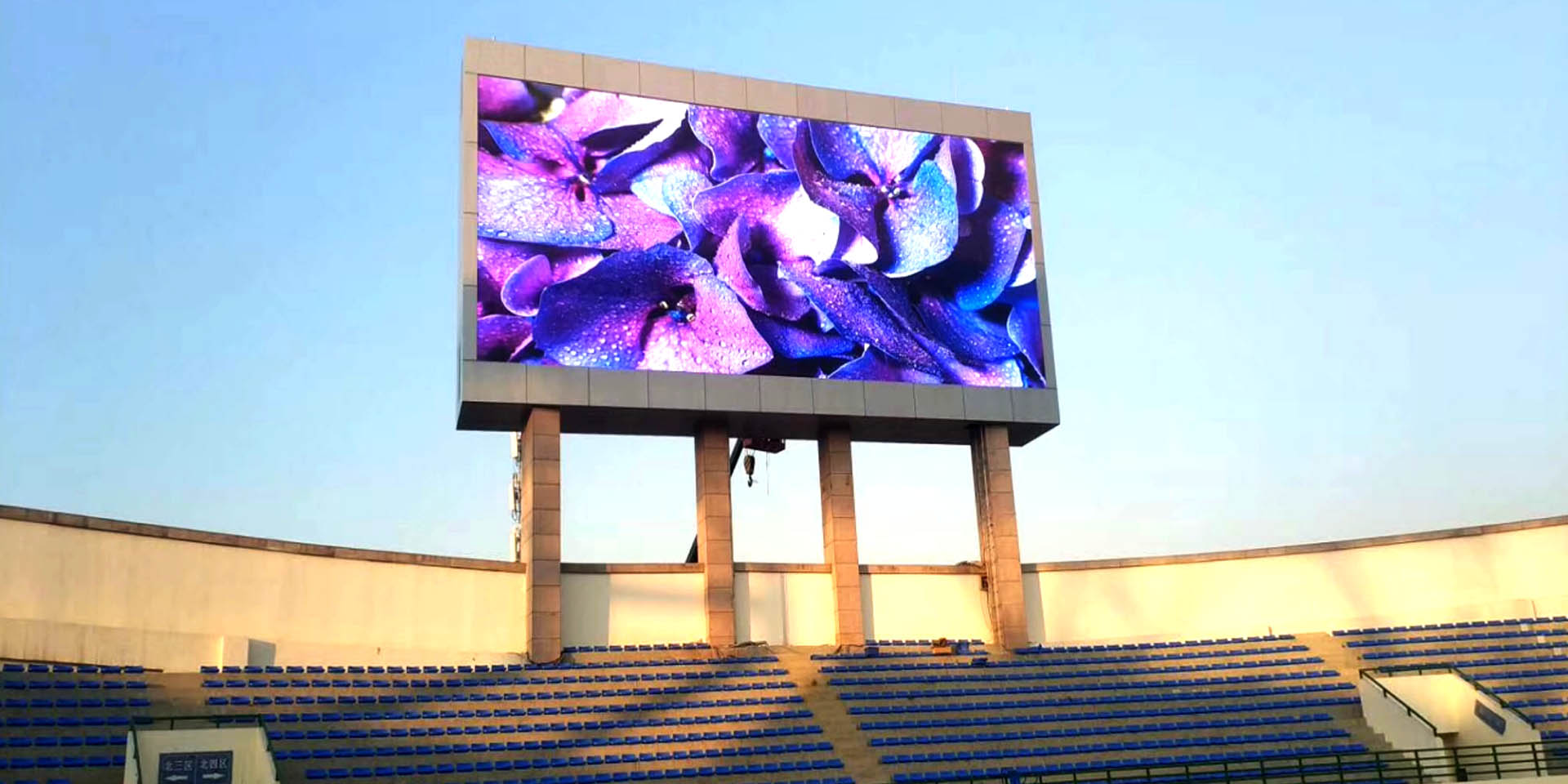

With brightness up to 9000nits, LED display can have a clear visual effect under direct sunlight. The brightness can be adjusted automatically according to ambient brightness to get the best visual effect with clear display pictures in daytime, bright and colorful in night-time, and eye-catching at long viewing distances.

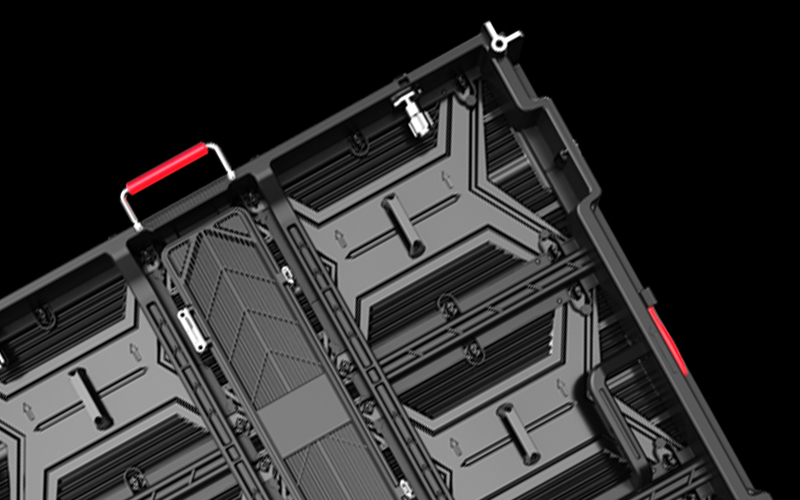

Aluminum control box through advanced structural design to achieve good ventilation, corrosion resistance, water-proof, and heat dissipation. Can protect the internal electrical equipment from the external environment and effectively extend the equipment's lifespan.

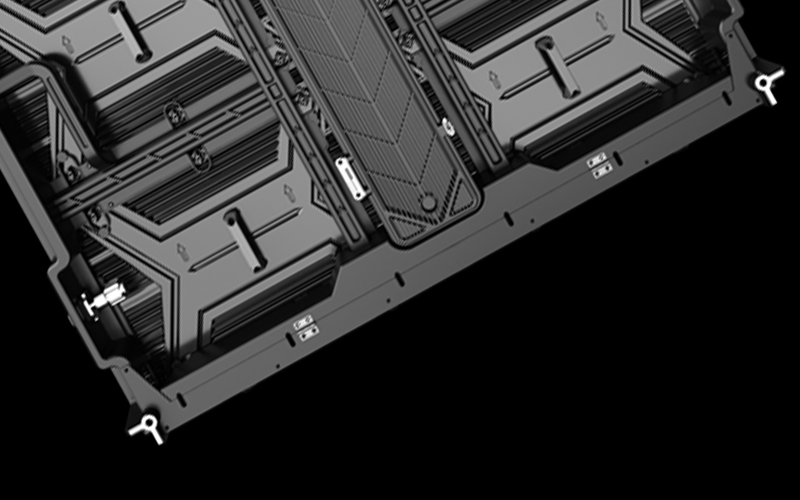

The hidden wires make the LED screen look cleaner and more beautiful and effectively protect the wires from damage, exposed wire is easily affected by the external environment, resulting in wire aging, hiding the wire, can increase safety, protect the wire to extend the service life High LED screen stability and reliability, back maintenance is also more convenient.
Common cathode LED is an energy-saving technology with high light efficiency, long life, and low temperature. Advantages such as less heat, and less energy consumption.

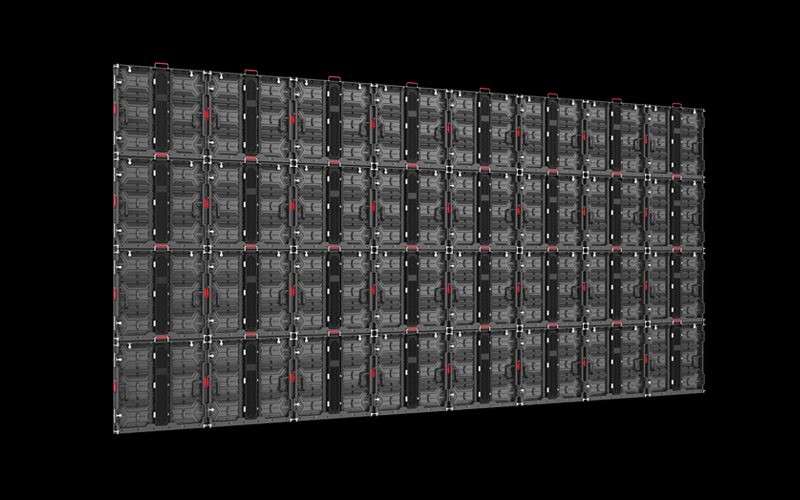

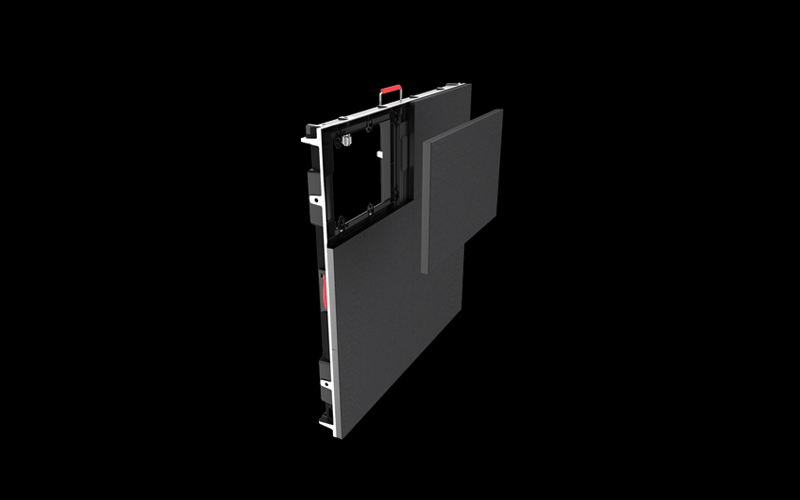

The unique structure design makes the cabinet can be quickly disassembled with simple tools and convenient operations. All components inside can be maintained from the front/rear.
Waterproof, damp-proof, dustproof, lightning protection, anti-electromagnetic interference, anti UV, Extremely high and low temperatures or other severe environments, our LED display remains good performance.
| Item | P6 | P8 | P10 |
| LED | SMD2727 | SMD2727 | SMD3535 |
| Pixel Pitch (mm) | 6.67 | 8 | 10 |
| Module Resolution | 48x72 | 40x60 | 32x48 |
| Module Size (WxH) | 320x480 | ||
| Module Quantity (WxH) | 3x2 | ||
| Cabinet Resolution | 144x144 | 120x120 | 96x96 |
| Cabinet Size (WxH) | 960（W）*960（H）*70（D）mm | ||
| Cabinet Material | Aluminium Alloy | ||
| Ingress Protection | IP67 | ||
| Refresh Rate (Hz) | 3840 | ||
| Brightness (nits) | 5000-9500 | ||
| View Angle (H./V.) | 120° / 120° | ||
| Contrast Ratio | 5000;1 | 5000;1 | 5000;1 |
| Max. Power Consumption | 600W/m² | ||
| Avg. Power Consumption | 200W/m² | ||
