X-Series 16:9 ratio is a perfectly seamless splicing display with the unique properties of efficient heat dissipation, extreme thinness and high brightness, which provides a more cost-effective solution and faster installation, thus saving you money.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team
Designed in 16:9 aspect ratio, X Series is ultra friendly to assemble LED walls in 2K, 4K, 8K, etc.

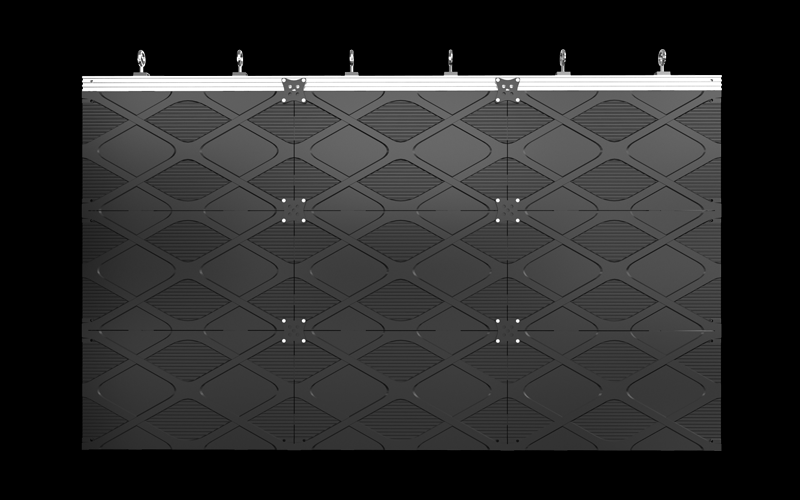

CNC machining, high precision of the case, and good flatness of the screen splicing.
Modules are built in with calibration data and can automatically retrieve data after module replacement.

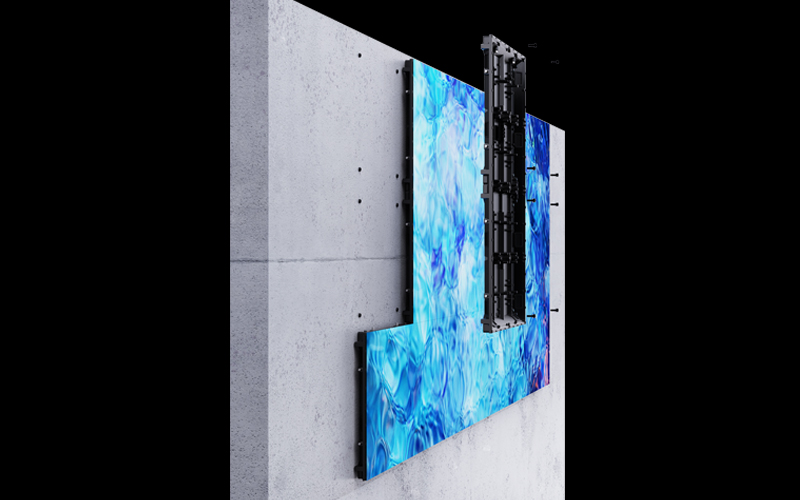

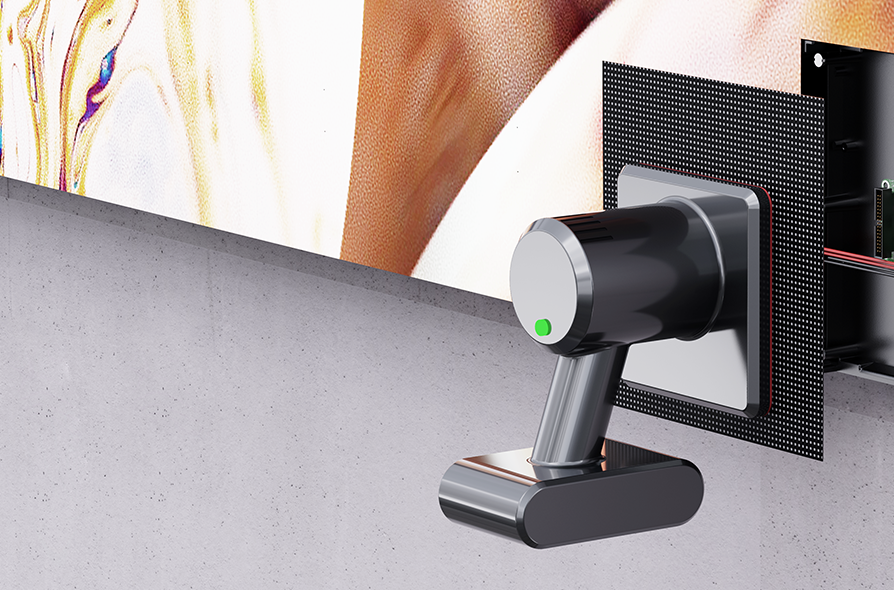

LED modules front service for easy maintenance. The innovative vacuum suction tool prevents damage to the LEDs during maintenance.
X Series enables optional wireless connections to remain stable even after 90°rotation.

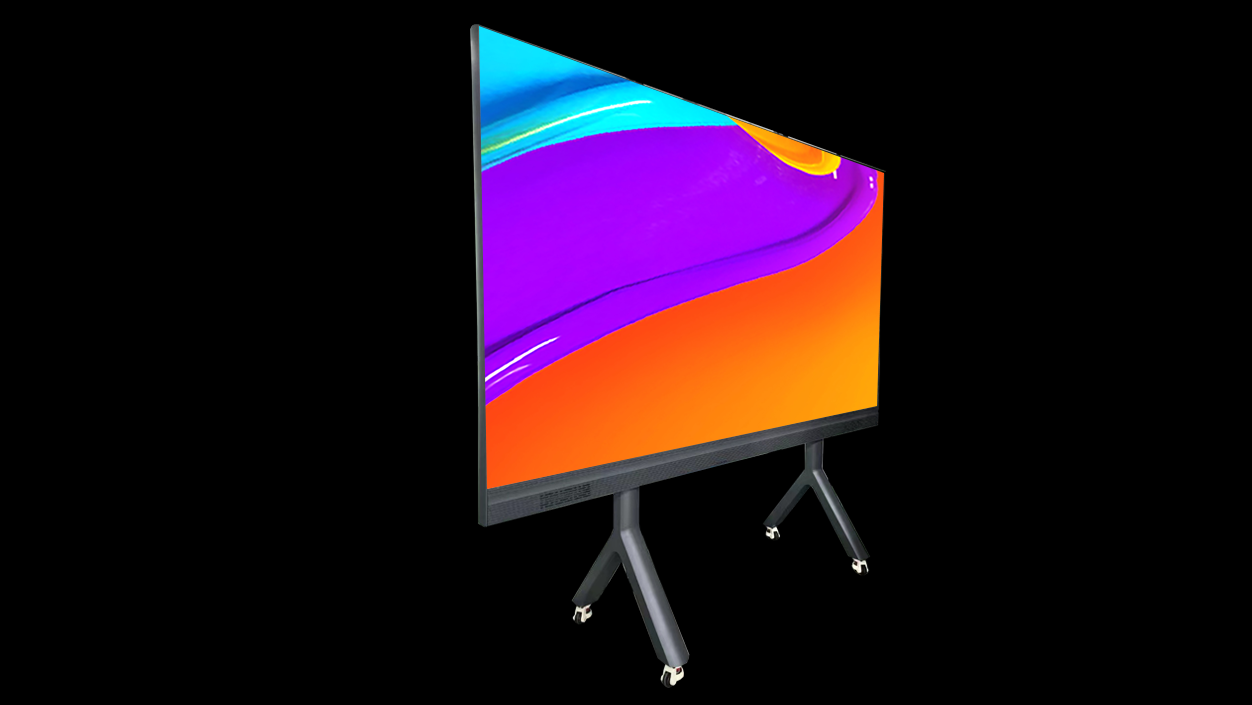

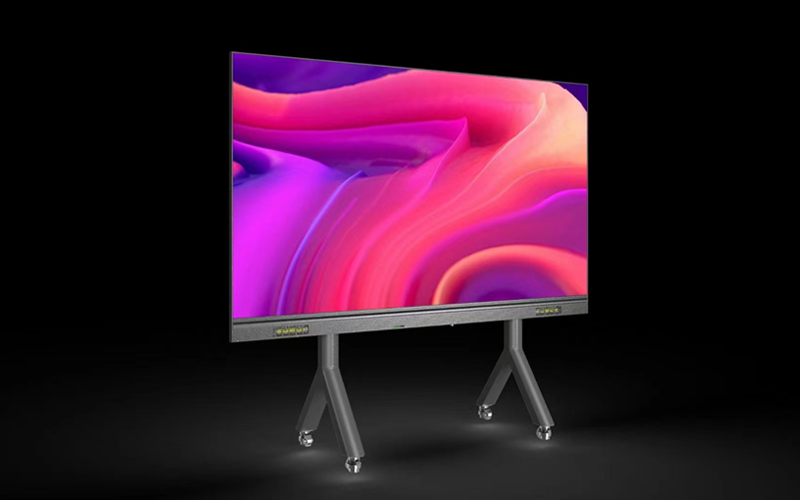

Multiple mounting options for easy selection
| Item | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
| Pixel Pitch (mm) | 1.25mm | 1.53mm | 1.86mm | 2mm | 2.5mm |
| Module Resolution | 256*144 | 208*116 | 172*96 | 160*90 | 128*72 |
| Module Size (WxH) | 320*180mm | ||||
| Pixel Density (pixels/m²) | 640000 | 422626 | 289000 | 250000 | 160000 |
| Cabinet Size (WxH) | 640*360*48mm | ||||
| Cabinet Weight (kg/pc) | 5.5 | ||||
| Cabinet Material | Die-Cast Aluminum | ||||
| Ingress Protection | IP32 | ||||
| Maintenance | Front | ||||
| Refresh Rate (Hz) | 3840 | ||||
| Brightness (nits) | 600 | 600 | 600 | 600 | 600 |
| View Angle (H./V.) | 160° / 140° | ||||
| Contrast Ratio | 5000;1 | ||||
| Max. Power Consumption | 450W/m² | ||||
| Avg. Power Consumption | 225W/m² | ||||
