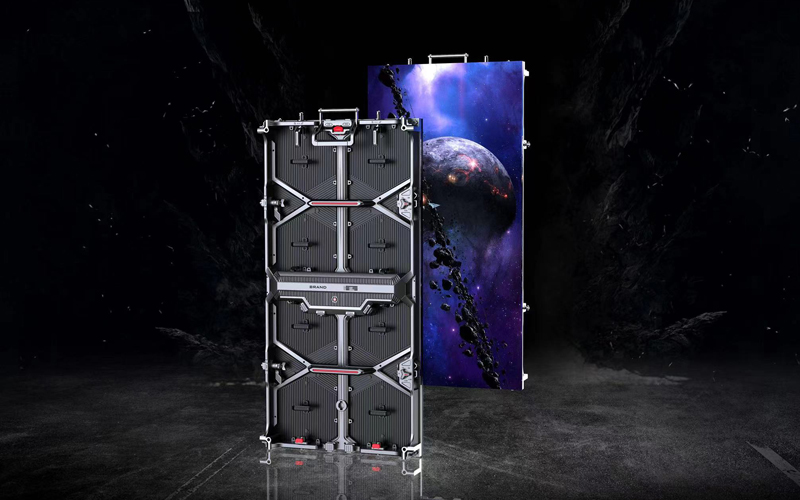

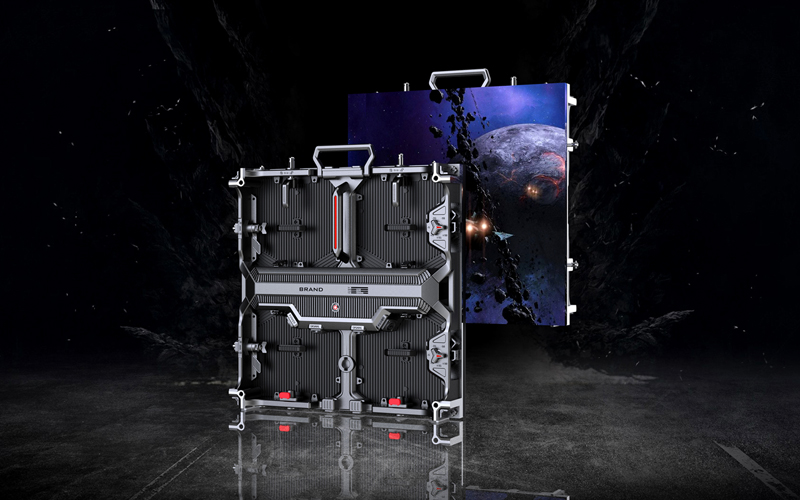

Opus has superior display performance and becomes the focal point of your event. Stunning display effects are presented with an extremely high refresh rate, outstanding gray scale processing, and ultra-wide views. The product has low maintenance cost, not only convenient and quick installation and disassembly, but also cost advantages. The cabinet is light in weight and requires low installation costs; the cabinet has low power consumption, saves operating costs, reduces labor costs, and has strong versatility.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. Seeing Led Team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
Seeing Led Team
Stunning display effects are presented with an extremely high refresh rate, outstanding gray scale processing, and ultra-wide views.
Intelligent and dynamic low power consumption under low brightness and gray level

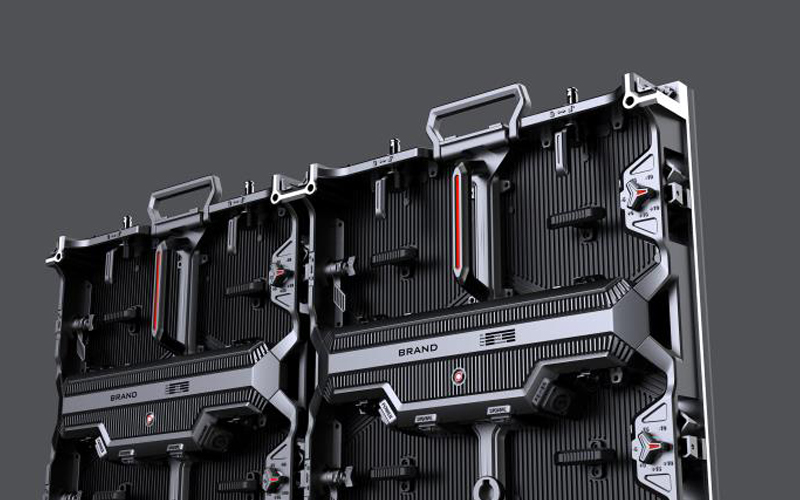

Ultra-thin & lightweight structure for faster & labor-saving installation, Proven indoor rental LED wall for stages, weddings, musicals, press conferences, etc.

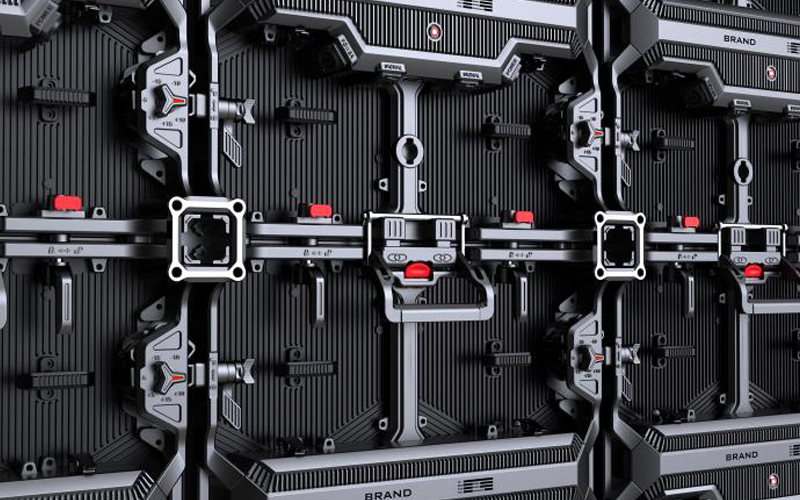

High-precision arc locks work durably without wear and deformation, Arc lock offers different options (Standard:±3°/0°/+6°; Optional: ±2.5°/0°/-5°)

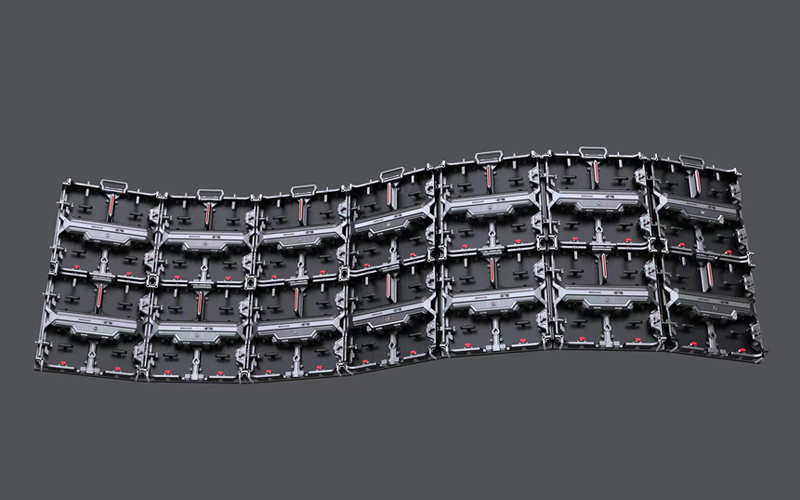

Arc locks on both sides of the cabinet allow inner and outer curved splicing to seamlessly

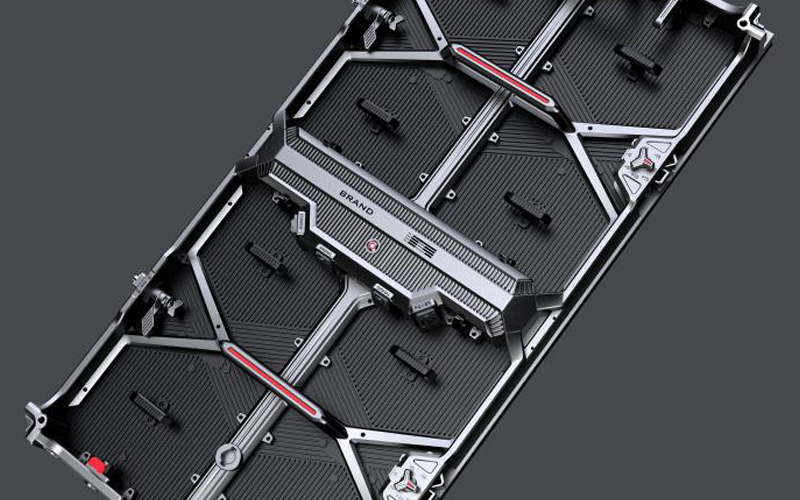

Ergonomic product design with considerate details facilitates high-speed installation & labor-saving set-ups.
| ITEM | P2.6(Indoor) | P3.91(Indoor) | P2.97(Outdoor) | P3.91(Outdoor) | P4.81(Outdoor) |
| Pixel Pitch (mm) | 2.6mm | 3.91mm | 2.97mm | 3.91mm | 4.81mm |
| Module Resolution | 96x96 | 64x64 | 84x84 | 64x64 | 52x52 |
| Module Size (WxH) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Pixel Density (pixels/m²) | 36,864 | 16,384 | 28,224 | 16,384 | 10,816 |
| Cabinet Size (WxH) | 500 x 500 x 67 / 500 x 1000 x 67 | ||||
| Cabinet Weight (kg/pc) | 6.5 | 6.5 | 7/12 | 7/12 | 7/12 |
| Cabinet Material | Die-Cast Aluminum | ||||
| Ingress Protection | IP30 | IP30 | IP65 | IP65 | IP65 |
| Maintenance | Front | Front | Front | Front | Front |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Brightness (nits) | 800-1200nits | 800-1200nits | 2500-4500nits | 2500-4500nits | 2500-4500nits |
| View Angle (H./V.) | 160° / 160° | ||||
| Contrast Ratio | 5000;1 | 5000;1 | 5000;1 | 5000;1 | 5000;1 |
| Scan Mode | 1/32 | 1/16 | 1/21 | 1/16 | 1/13 |
| Max. Power Consumption | 600W/m² | 600W/m² | 600W/m² | 600W/m² | 600W/m² |
| Avg. Power Consumption | 200W/m² | 200W/m² | 200W/m² | 200W/m² | 200W/m² |
