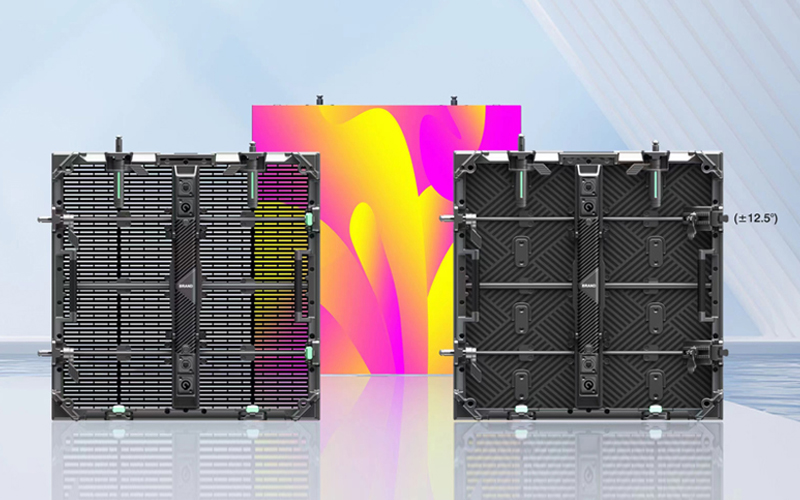

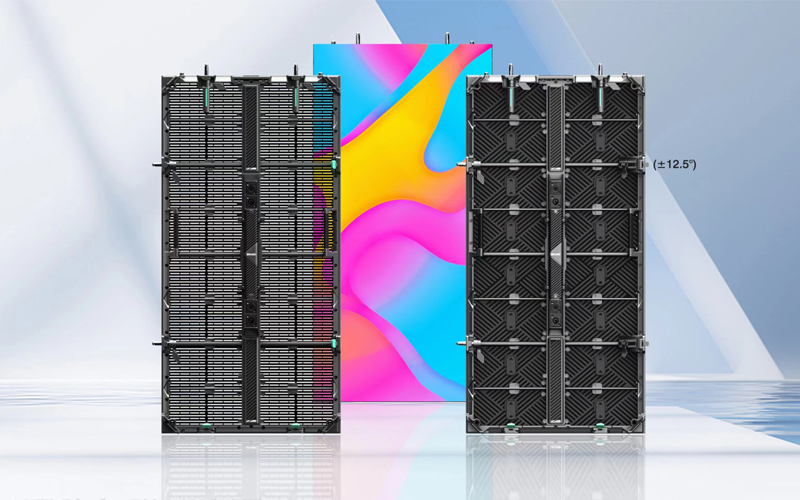

Mars series is divided into AB 2 models, cabinet size can be done 500*500mm and 500*1000mm, A models for the regular module, B models can be done transparent screen, a design for multiple purposes, a variety of options for the pixel pitch, excellent appearance and design plus a unique display performance to make your activities more outstanding!
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. Seeing Led Team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
Seeing Led Team
Unique and innovative design， one cabinet for multiple purposes, applicable to any scene, to meet your event needs
Superior visual performance with high brightness and high refresh rate, ready to create stunning event moments at any time.

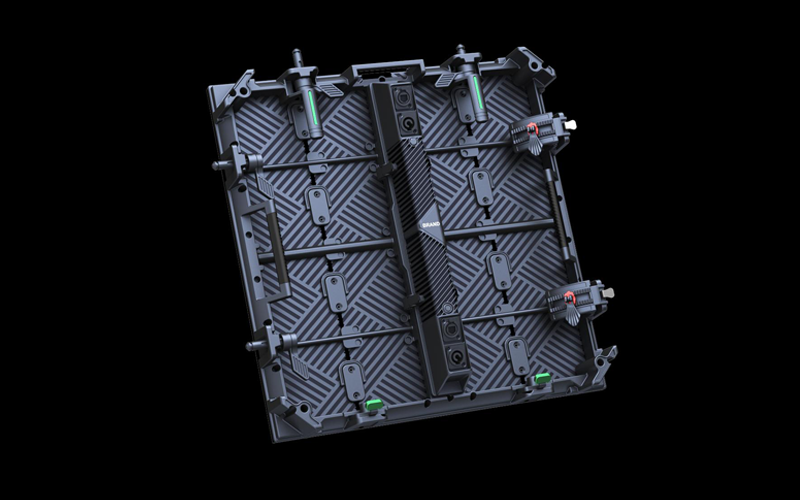

Auto-locking vertical lock system for fast and easy 1 man installation with ultimate safety and pixel protection

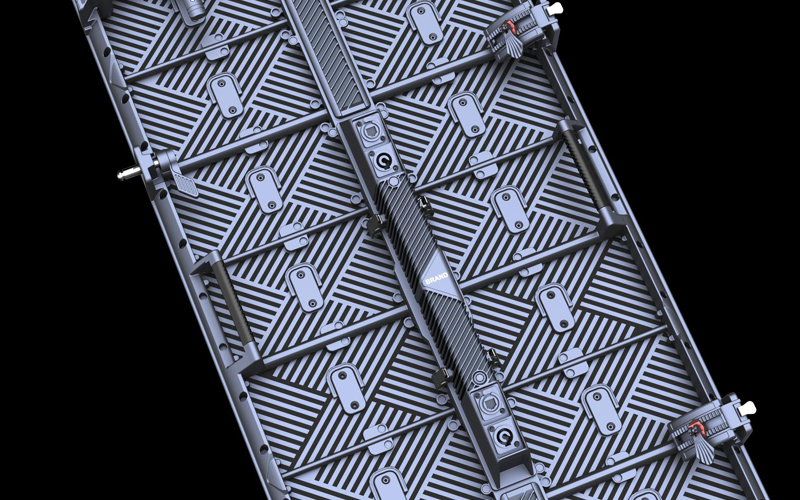

Universal modules can be magnetic or screw-fixed for higher flexibility. To protect lamps from damage, the LED panels feature one-press semi-automatic corner protectors and can stand on the ground at an angle.

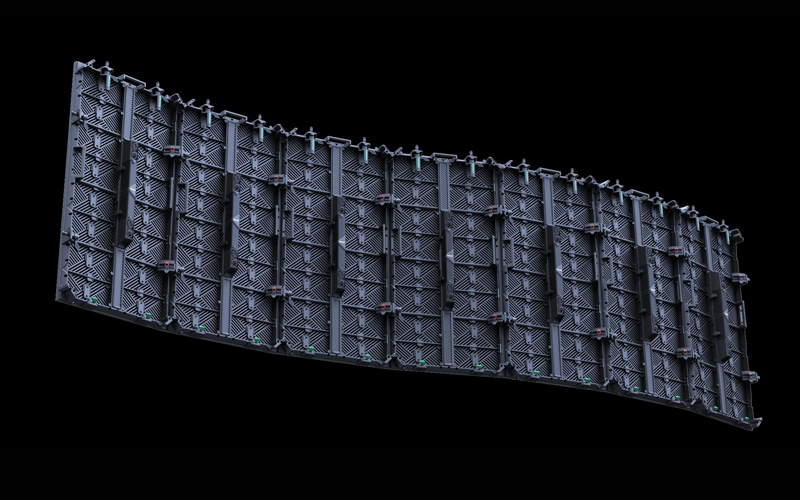

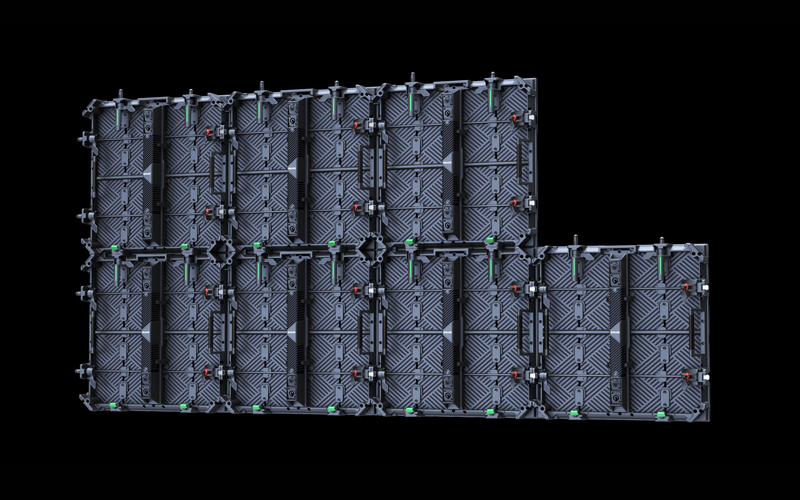

It can be customized to splice any cabinets, inner arc Outer arc or Curved screens can be spliced at will
Support multiple installation, hanging, stacking, and fixed installation
| ITEM | P2.6(Indoor) | P3.91(Indoor) | P2.97(Outdoor) | P3.91(Outdoor) | P3.9-7.8(Outdoor) |
| Pixel Pitch (mm) | 2.6mm | 3.91mm | 2.97mm | 3.91mm | 3.9-7.8mm |
| Module Resolution | 192x48 | 128x32 | 168x42 | 128x32 | 128x16 |
| Module Size (WxH) | 500 x 125 | ||||
| Pixel Density (pixels/m²) | 36,864 | 16,384 | 28,224 | 16,384 | 32,768 |
| Cabinet Size (WxH) | 500 x 500 x 83 / 500 x 1000 x 83 | ||||
| Cabinet Weight (kg/pc) | 6.5 | 6.5 | 7/12 | 7/12 | 9 |
| Cabinet Material | Die-Cast Aluminum | ||||
| Ingress Protection | IP30 | IP30 | IP65 | IP65 | IP65 |
| Maintenance | Front | Front | Front | Front | Front |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Brightness (nits) | 800-1200nits | 800-1200nits | 2500-4500nits | 2500-4500nits | 2500-4500nits |
| View Angle (H./V.) | 160° / 160° | ||||
| Contrast Ratio | 5000;1 | 5000;1 | 5000;1 | 5000;1 | 5000;1 |
| Scan Mode | 1/32 | 1/16 | 1/21 | 1/16 | 1/8 |
| Max. Power Consumption | 600W/m² | 600W/m² | 600W/m² | 600W/m² | 800W/m² |
| Avg. Power Consumption | 200W/m² | 200W/m² | 200W/m² | 200W/m² | 200W/m² |
