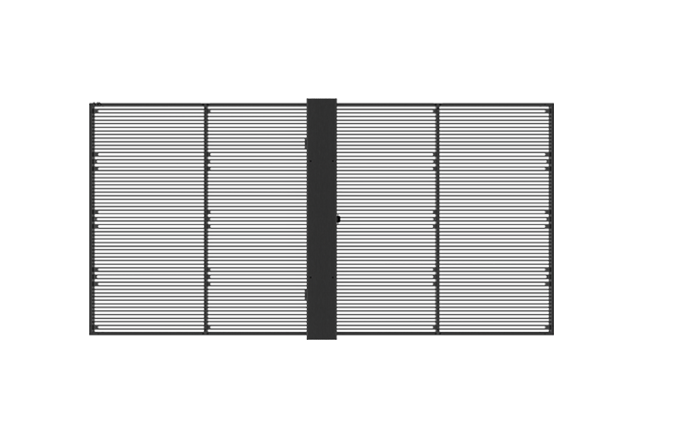

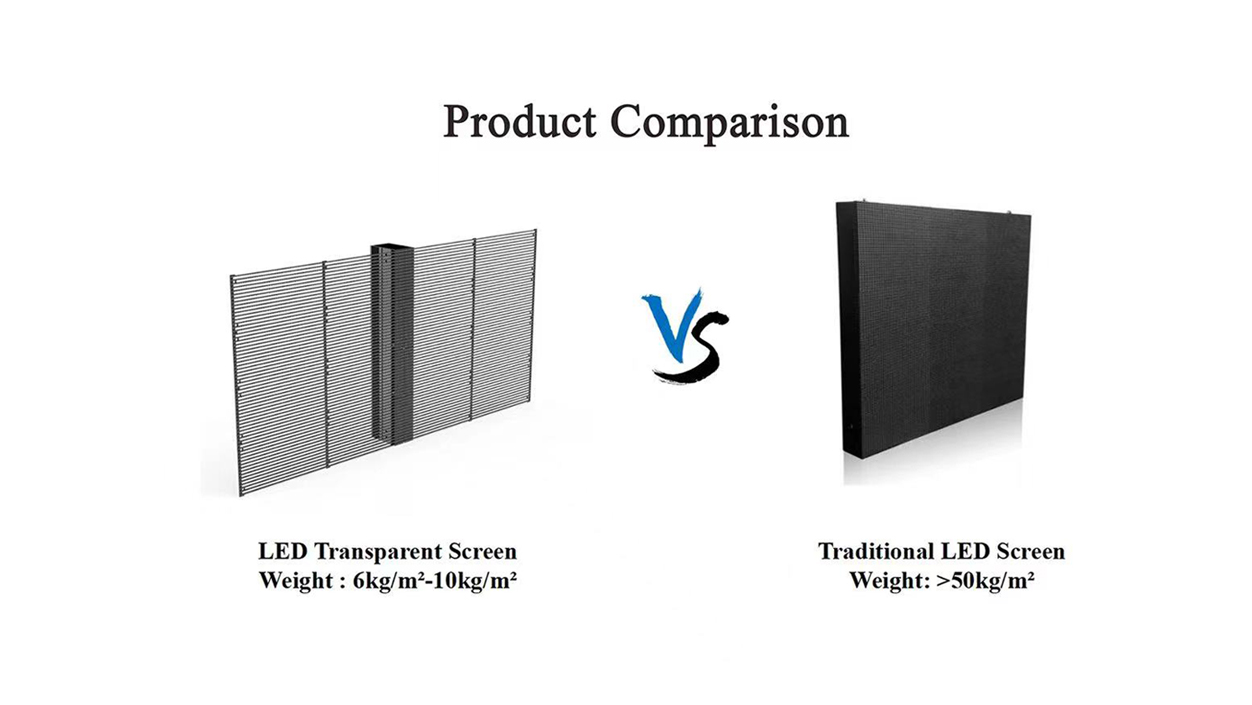

LED transparent screen is a new and unique display design that reduces structural obstruction of vision and improves perspective. Transparent screen can be achieved screen such as glass - like transparent, maintain transparency at the same time to ensure that the dynamic picture of the color-rich program and display details, so the transparent screen allows users to watch the space behind the screen through the screen in close proximity.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team

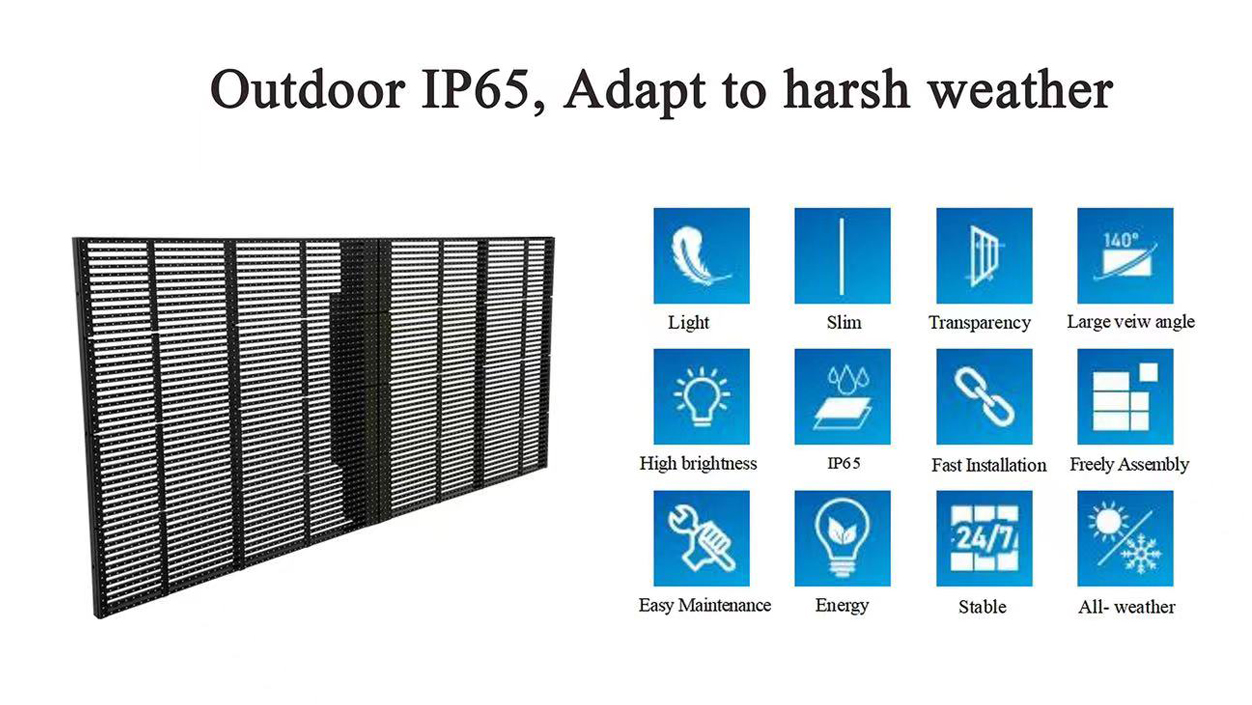

IP65 outdoor waterproof, bead filling, power box sealing treatment, to ensure good waterproof performance, can be used in rainy days.
Good heat dissipation for energy saving and environmental protection.
Higher translucency, transmittance rate up to 80%, does not affect the indoor lighting, does not affect the original design.

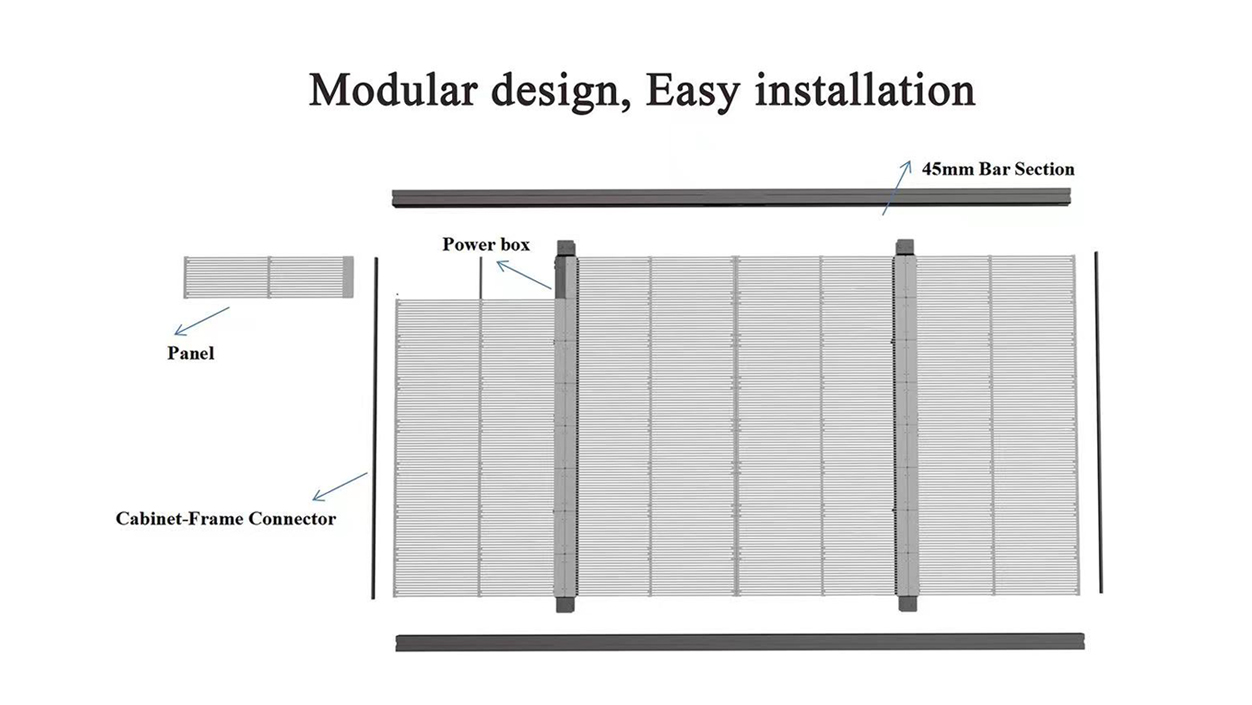

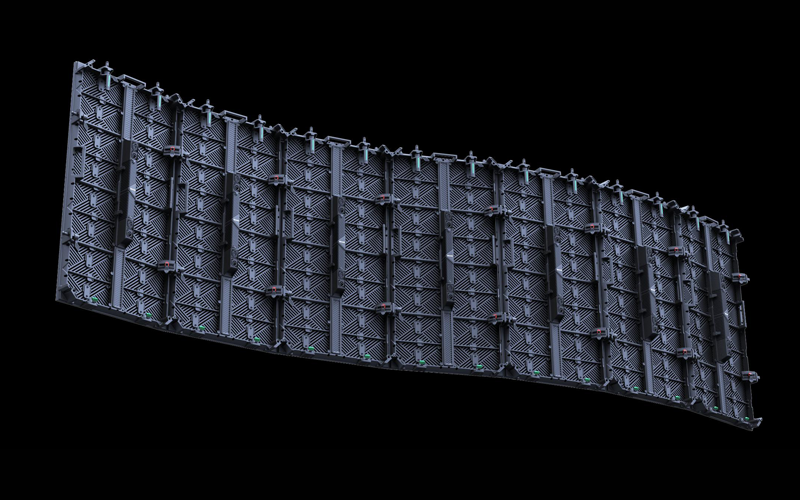

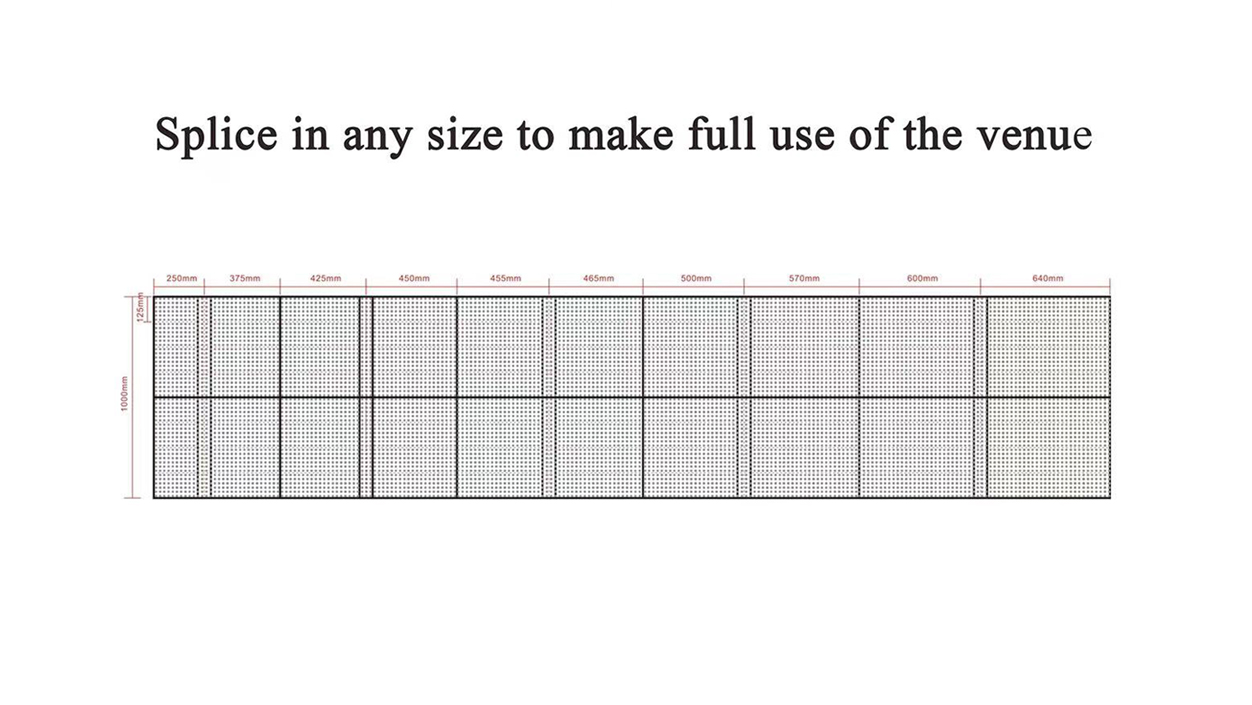

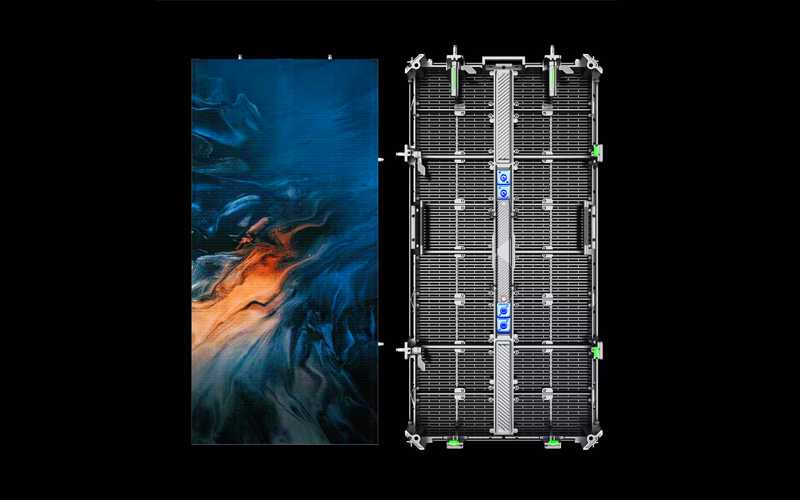

Spellable arc, arc lock design, can be spliced into arc, square, cylindrical and other shapes, to meet the needs of a variety of scenes.
Urban CBD, large shopping malls, transportation hubs, glass windows, commercial exhibitions, etc.
High brightness, high refresh, brightness up to 6000CD, can be used during the day, the use of high-efficiency LED lights, the same brightness under the conditions of lower energy consumption
| ITEM | P3.9-7.8(Indoor) | P7.8-7.8(Indoor) | P10.4-10.4(Indoor) | P3.9-7.8(Outdoor) | P10.4-10.4(Outdoor) |
| Pixel Pitch (mm) | 3.9-7.8mm | 7.8-7.8mm | 10.4-10.4mm | 3.9-7.8mm | 10.4-10.4mm |
| Module Resolution | 128x16 | 64x16 | 48x12 | 128x16 | 48x12 |
| Module Size (WxH) | 500 x 125 | ||||
| Pixel Density (pixels/m²) | 32256 dots/㎡ | 16384 dots/㎡ | 9216dots/㎡ | 32256 dots/㎡ | 9216dots/㎡ |
| Cabinet Size (WxH) | 500 x 1000 | ||||
| Cabinet Weight (kg/pc) | 12 | ||||
| Cabinet Material | Aluminum | ||||
| Ingress Protection | IP30 | IP30 | IP30 | IP65 | IP65 |
| Maintenance | Front | Front | Front | Front | Front |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Brightness (nits) | 4500-5000nits | 4500-5000nits | 4500-5000nits | 5000nits | 5000nits |
| View Angle (H./V.) | 160° / 160° | ||||
| Contrast Ratio | 5000;1 | 5000;1 | 5000;1 | 5000;1 | 5000;1 |
| Scan Mode | 1/8 | 1/4 | 1/3 | 1/8 | 1/2 |
| Max. Power Consumption | 800W/m² | 800W/m² | 800W/m² | 800W/m² | 800W/m² |
| Avg. Power Consumption | 260W/m² | 260W/m² | 260W/m² | 260W/m² | 260W/m² |
