In some large shopping malls, in addition to the conventional LED display used for advertising, the LED floor screen is also an advertising carrier. On the one hand, with novel interactive functions, it can attract more people to stay and bring more potential customers to the business. On the other hand, the LED floor screen can display the promotional information of the shopping mall. So it can be a good helper for brand promotion. In a word, the floor LED display conveys more commercial information than a commercial LED display.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team

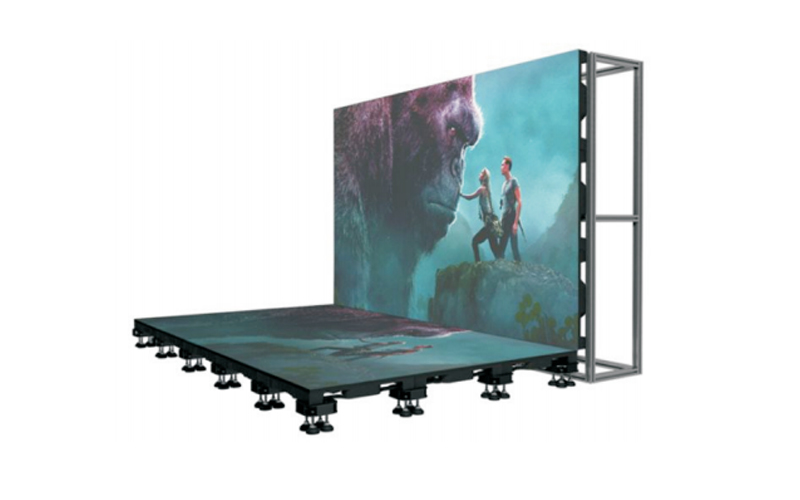

The LED floor screen brings a lot of passion and interactivity to the display field. Especially on the stage, in exhibitions, weddings, bars, fashion shows, large-scale concerts, and some large-scale events. Its display has made it the favorite of ground stage design.

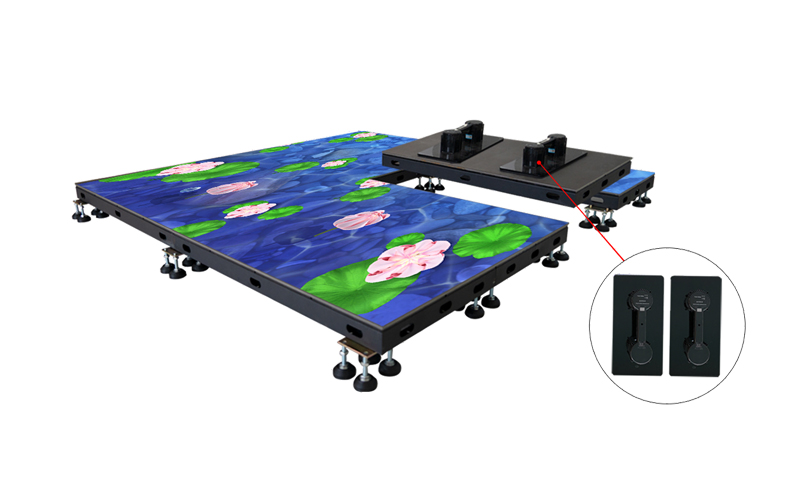

Rechargeable vacuum maintenance, suitable for disassembly and installation of all series floor screens.

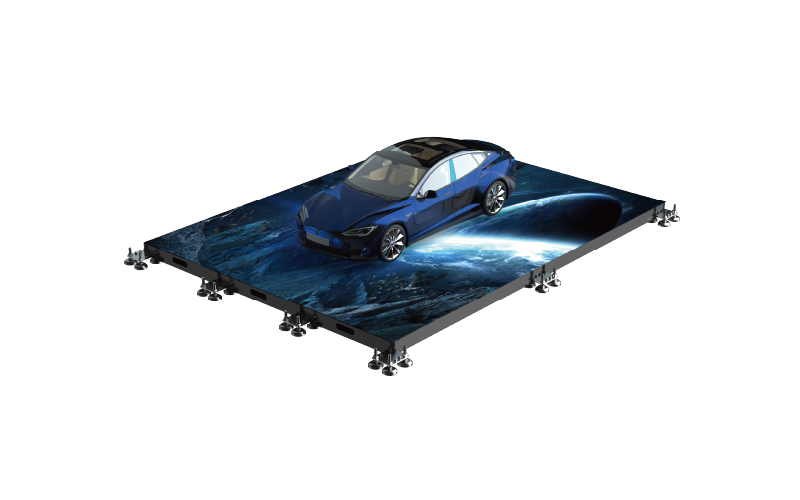

The professional structure matching and surface support design in the module makes the interactive LED floor screen have high-strength load-bearing performance, with a load-bearing capacity of more than 2000KG/m2, without fear of car rolling, or high heels arbitrarily stepping.

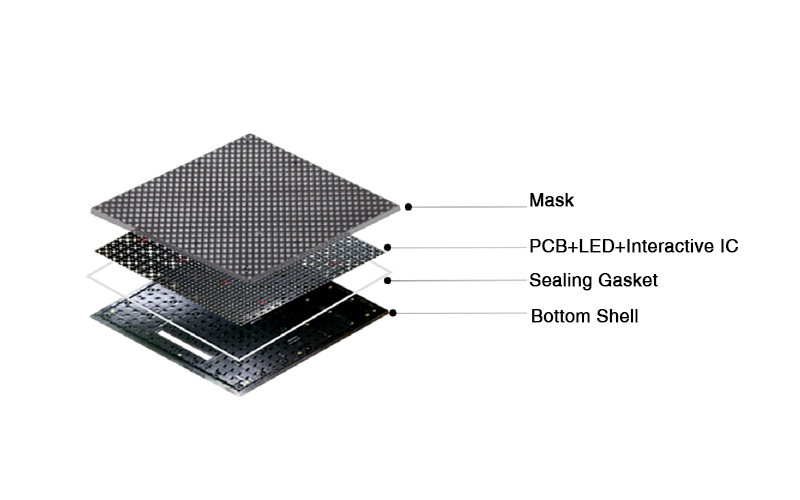

The mask is made of imported PC material, which is wear-resistant, pressure-resistant, waterproof, non-slip, and anti-glare, with a flat surface design and wider viewing angle. The PCB board is designed with 8-16 sensor chips, which have better interactive sensor effects and faster speed.
The main control can send to the computer within 1 second 181 return data. The receiving card can reply to the main control within 1 second and pass data 60 times. Our sensitivity can reach 0.016 seconds, leading to the industry level.

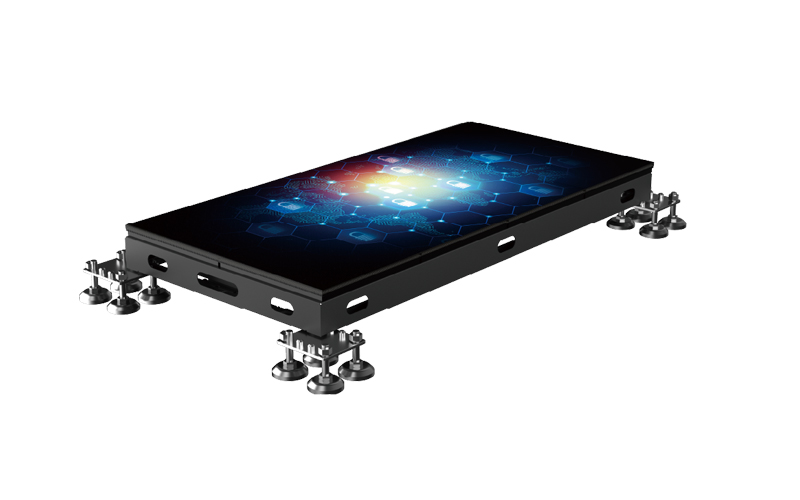

The installation adopts adjustable foot installation, the installation height can be adjusted, and the adjustment height is between 130-170mm, which is convenient and quick to install.
| ITEM | P2.5 | P2.976 | P3.91 |
| Pixel Pitch (mm) | 2.5mm | 2.976mm | 3.91mm |
| Module Resolution | 100x100 | 84x84 | 64x64 |
| Module Size (WxH) | 250 x 250 | ||
| Pixel Density (pixels/m²) | 160000 | 112896 | 65536 |
| Cabinet Size (WxH) | 500 x 500 x 80 / 500 x 1000 x 80 | ||
| Cabinet Weight (kg/pc) | 12 | 23 | 23 |
| Cabinet Material | Iron | ||
| Ingress Protection | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Maintenance | Front | Front | Front |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Brightness (nits) | 900-1800nits | 900-1800nits | 900-1800nits |
| View Angle (H./V.) | 160° / 160° | ||
| Contrast Ratio | 3000;1 | 3000;1 | 3000;1 |
| Scan Mode | 1/21 | 1/21 | 1/16 |
| Max. Power Consumption | 200W/m² | 400W/m² | 400W/m² |
| Avg. Power Consumption | 100W/m² | 200W/m² | 200W/m² |
