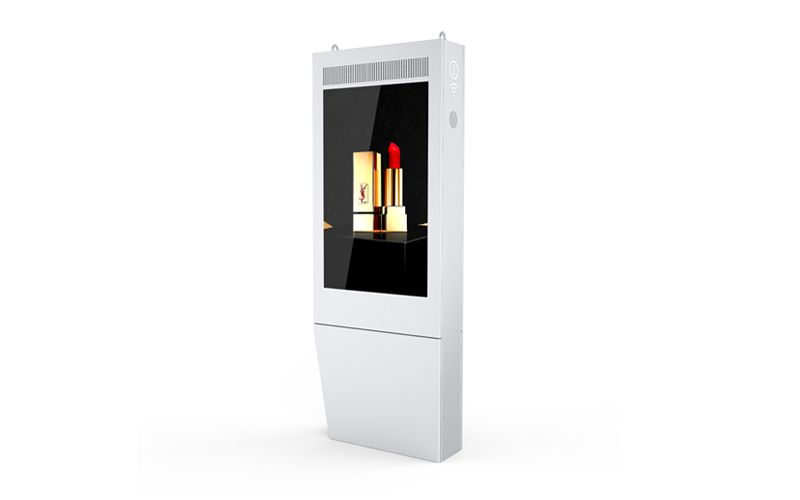

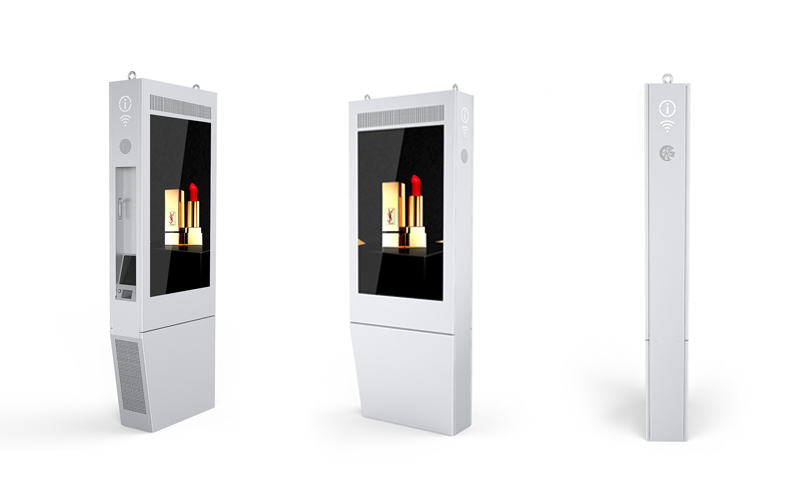

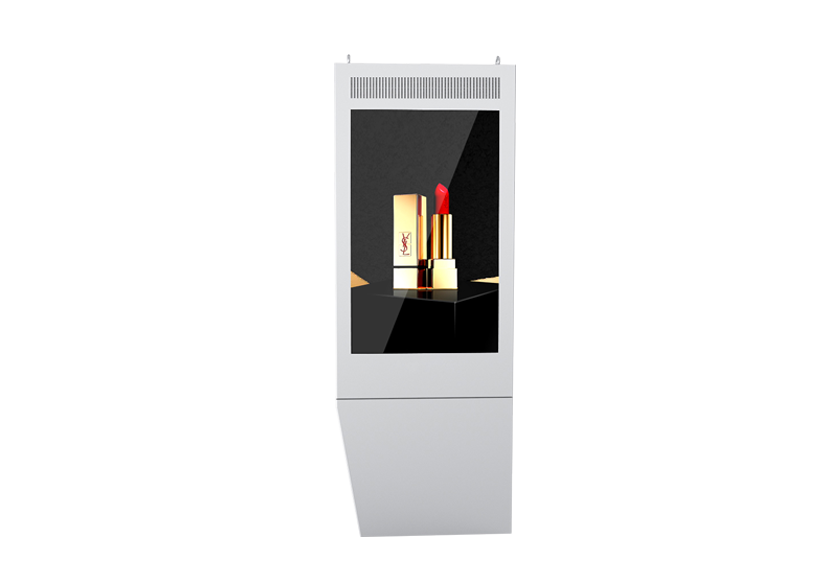

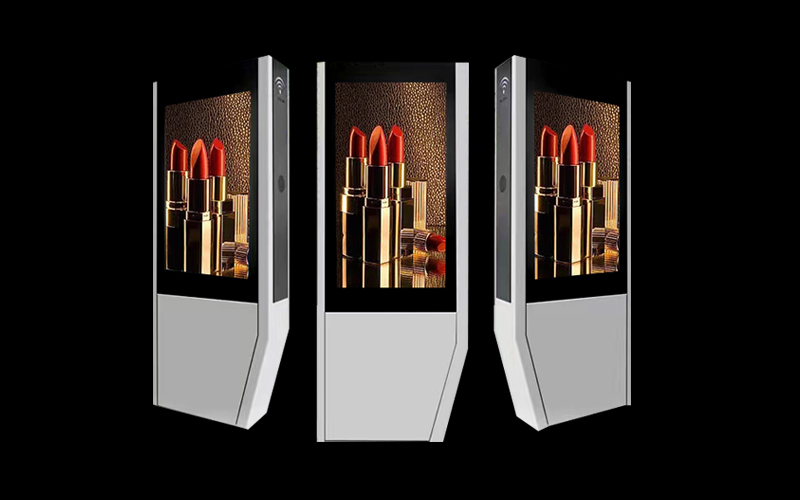

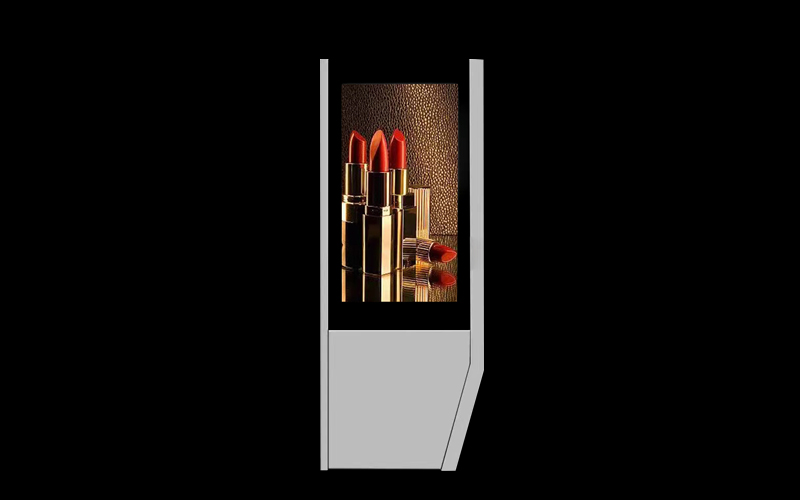

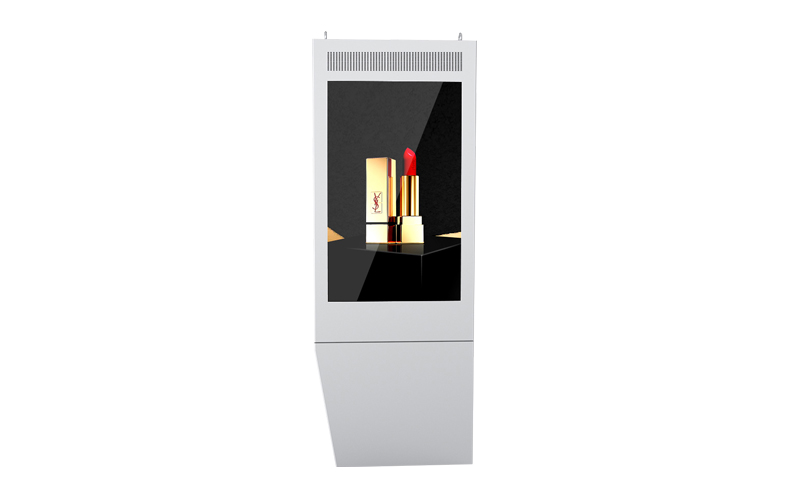

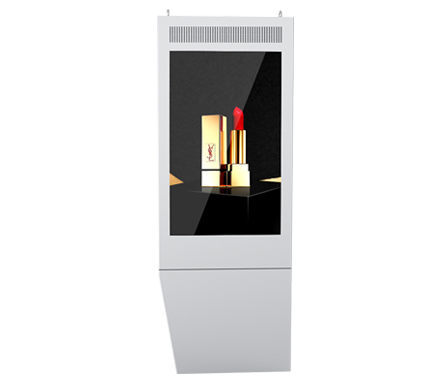

Outdoor conditions are often variable, with wind, rain, etc., and large variations in temperature and humidity, so the Pixel Pro Series can function in these harsh environments as well. On top of that, as an outdoor device, it needs to be able to resist theft and damage. It also has an IP65 protection rating and tempered, explosion-proof glass. In addition to the traditional waterproof and dustproof, it is also excellent in anti-theft, anti-explosion, lightning, corrosion, and other aspects, with more comprehensive protection.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team
Built-in Android system and Windows system options. You can also use your media player if required.
AR glass with high transmission and low reflection. Almost 100% of UV is blocked and IR transmission is significantly reduced.
Capacitive touch provides a fast touch experience and fast speed. Optional capacitive touch or no touch.
The display with an IP65 rating can withstand all wet weather conditions and keep out airborne dust.
LAN, Wi-Fi, 4G network connection are available. The playlist can be remotely updated over the internet.

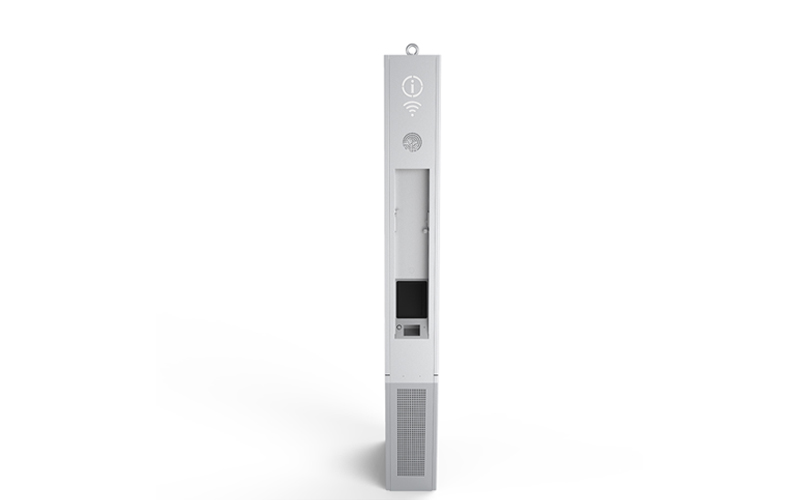

The enclosure is made from steel sheets and toughened safety glass. All controls and inputs are hidden and not accessible to passers-by to avoid tampering.
Model | Pixel Pro |
Panel size | 55'' 65'' 75'' 86" |
Resolution | 1920*1080 / 3840*2160 |
Display color | 16.7 |
Brightness (nits) | 3000nits |
Contrast | 4000:1 |
Visual angle | 178°/178° |
Response | 6ms |
Touch screen | Touch or No touch |
Surface | AR glass |
Color | White |

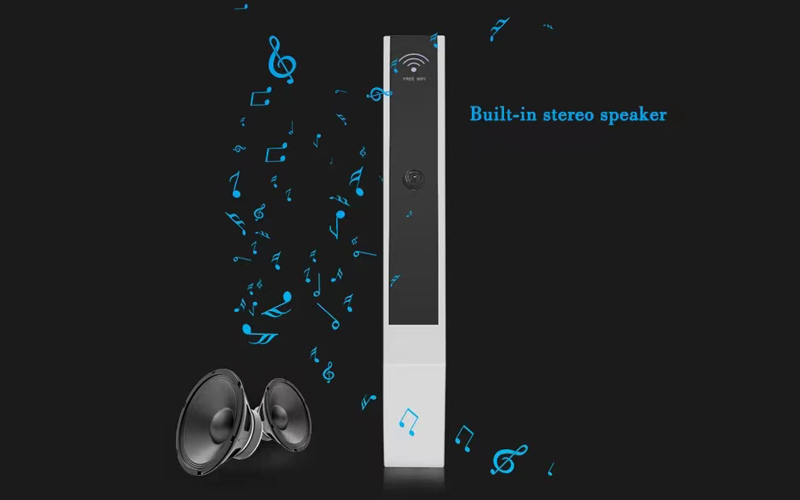

Speaker | 2X8Ω5W speakers |
Dustproof & Waterproof | IP55 / IP65 |
Brightness Control | Light sensor |
Temperature Control System | Air cooling system / Air conditioning |
Logo | Yes / No |
Power supply | AC/100-240V,50/60Hz |
Power consumption (max.) | 940W-1300W |
Operating temperature | -20°℃~+40℃ with fans, -30°℃~+50℃ with air conditioner |
Operating humidity | 10%-80%RH Non-condensing |
Storage temperature | -20°℃~+60℃ |
