KO Series adopts a high-temperature resistant LCD screen above 100 ℃, fully laminating technical solution imported from Germany with water glue. Outdoor lithium iron phosphate battery has a better lifespan, higher temperature resistance, and high safety factor, it can work continuously for 15 hours. Application Scenario: Advertisement Release, Retail Store, Shopping Mall, Showroom.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team
High-brightness LCD panels are more than three times brighter than home TVs, making them ideal for display in outdoor commercial spaces.

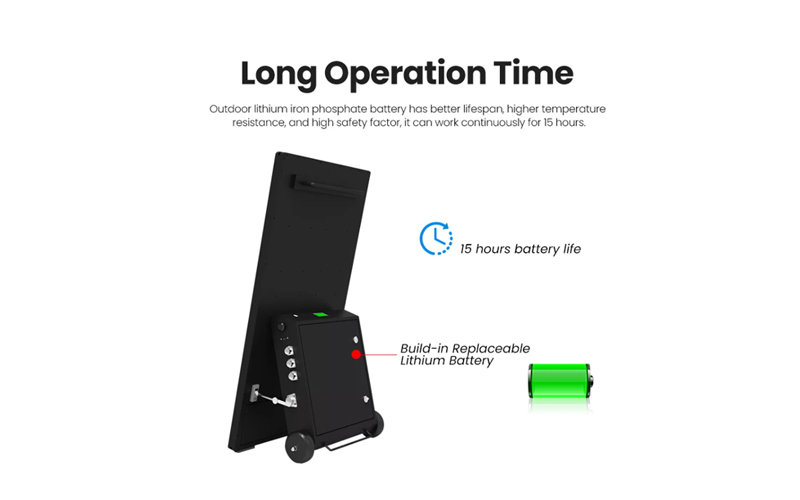

Outdoor lithium iron phosphate battery has a better lifespan, higher temperature resistance, and high safety factor, it can work continuously for 15 hours.
The screen is designed with an IP65 protection level, which can keep rainwater and debris, dust, and other particles in the air.IP65 rainproof and dustproof structure design, the screen can be protected from any wet weather, which greatly expands the application environment.

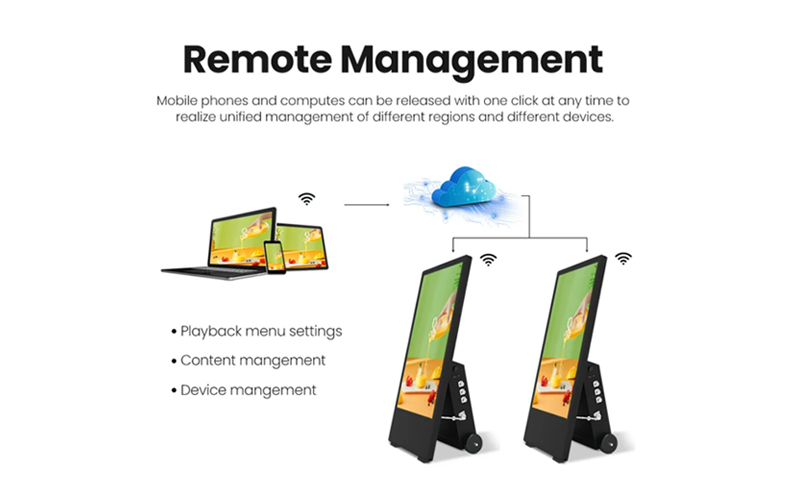

Mobile phones and computers can be released with one click at any time to realize unified management of different regions and different devices.

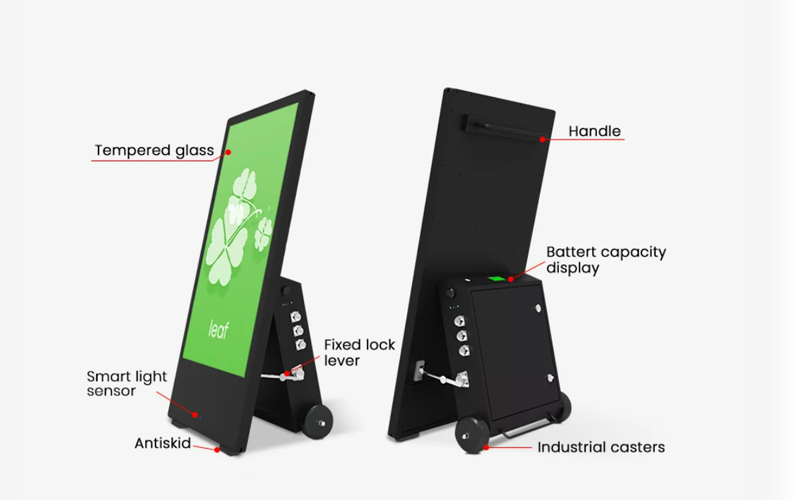

Foldable design and special casters are installed, which can be operated flexibly by one person, saving time and effort.
Display battery surface temperature and fan speed, precise heat dissipation control, and battery high-temperature power-off function.
Model | KO Series |
Panel size | 43" 49" 55" |
Resolution | 1920*1080 |
Display color | 16.7 |
Brightness (nits) | 1500nits |
Contrast | 4000:1 |
Visual angle | 178°/178° |
Response | 10ms |
Touch screen | 10-point capacitive touch |
IP grade | IP66 |
Surface | Tempered glass |
Speaker | 2X8Ω5W speakers |
Charging Interval | 10 hours |
Duration of Flight | 15 hours |
Battery Capacity | 62000mAh |
Voltage | 24V |
Power | 108W |
Energy Efficiency | 1058.54Wh |
Net weight (kg) | 35kg |
Operating temperature | -10°℃~+50℃ |
Operating humidity | 10%-80%RH Non-condensing |
Storage temperature | -30°℃~+80℃ |
